Large TC Oil Seal
Complete catalogue list: 74 model references. Use the size or product/OEM reference below when requesting a quotation.

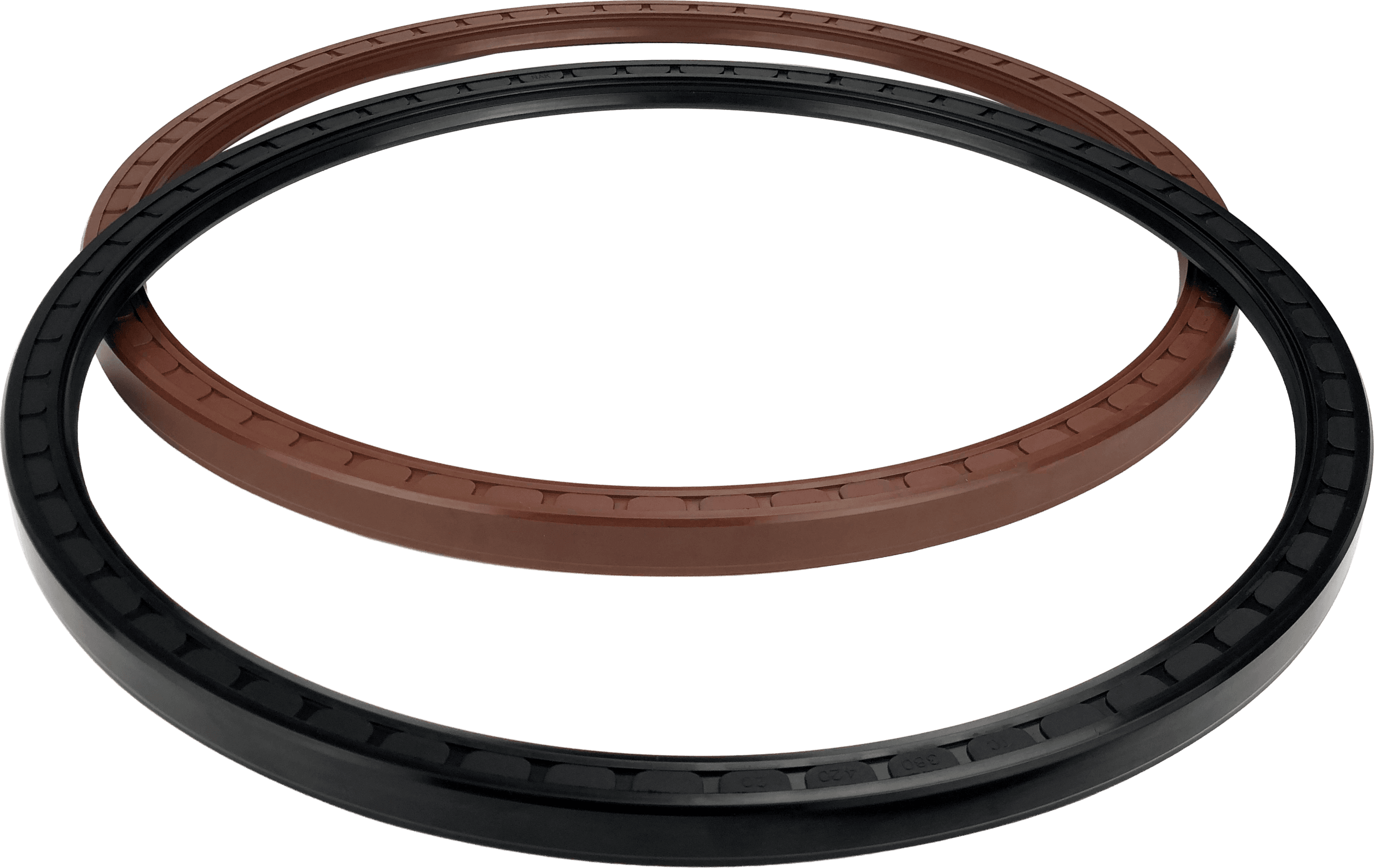

Representative product images. Final structure, material and dimensions depend on the selected model.
TCV High Pressure Oil Seal
Size & Model List
Size format: Inner Diameter × Outer Diameter × Width. Please confirm final suitability with GYIMF before ordering.
| No. | Size (mm) |
|---|---|
| 1 | 400×450×20 |
| 2 | 400×450×18 |
| 3 | 410×450×20 |
| 4 | 410×460×25 |
| 5 | 420×460×20 |
| 6 | 420×470×25 |
| 7 | 420×480×25 |
| 8 | 430×470×18 |
| 9 | 430×470×20 |
| 10 | 430×480×25 |
| 11 | 430×480×22 |
| 12 | 440×480×20 |
| 13 | 450×480×18 |
| 14 | 450×510×25 |
| 15 | 440×490×25 |
| 16 | 450×490×20 |
| 17 | 450×500×20 |
| 18 | 450×500×25 |
| 19 | 460×500×20 |
| 20 | 460×510×25 |
| 21 | 460×520×20 |
| 22 | 470×520×20 |
| 23 | 470×520×25 |
| 24 | 480×520×20 |
| 25 | 480×530×22 |
| 26 | 480×530×25 |
| 27 | 480×540×25 |
| 28 | 490×540×25 |
| 29 | 490×550×25 |
| 30 | 500×540×20 |
| 31 | 500×550×25 |
| 32 | 510×560×25 |
| 33 | 495×560×25 |
| 34 | 520×560×20 |
| 35 | 520×570×25 |
| 36 | 530×580×25 |
| 37 | 540×590×25 |
| 38 | 550×600×20 |
| 39 | 560×600×18 |
| 40 | 560×610×20 |
| 41 | 560×610×25 |
| 42 | 570×620×20 |
| 43 | 570×620×25 |
| 44 | 580×630×25 |
| 45 | 580×640×18 |
| 46 | 590×640×20 |
| 47 | 600×640×25 |
| 48 | 600×650×22 |
| 49 | 620×670×20 |
| 50 | 630×670×18 |
| 51 | 630×680×25 |
| 52 | 640×690×25 |
| 53 | 650×700×20 |
| 54 | 660×700×20 |
| 55 | 650×710×25 |
| 56 | 670×720×20 |
| 57 | 680×730×25 |
| 58 | 670×730×20 |
| 59 | 685×745×20 |
| 60 | 700×750×25 |
| 61 | 710×750×20 |
| 62 | 710×760×22 |
| 63 | 730×790×25 |
| 64 | 740×790×25 |
| 65 | 750×800×25 |
| 66 | 800×850×25 |
| 67 | 810×870×20 |
| 68 | 850×900×25 |
| 69 | 840×910×25 |
| 70 | 850×910×25 |
| 71 | 870×920×20 |
| 72 | 910×960×25 |
| 73 | 975×1020×25 |
| 74 | 1270×1320×25 |
Need price, material or customized dimensions?
Send the size, model number, drawing, sample photo, quantity and application. OEM/ODM customization is available.
